Quick Details

  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: NXptfe
  • Model Number: rolls white (ptfe) plastic sheet F4
  • Material: PTFE
  • Thickness: as order
  • Size: as order
  • model: rolls white (ptfe) plastic sheet F4
  • material: PTFE
  • skived sheet thickness: 0.5mm~12mm
  • skived sheet width: 10mm~1500mm
  • shived sheet length: unlimited
  • moulded sheet width: 350mm~1000mm
  • moulded sheet thickness: 4mm~80mm
  • moulded sheet length: 10mm~1200mm
  • color: white
  • density: 2.21~2.3g/cm3

Packaging & Delivery

Packaging Details: packed with plastic film firstly,and the packed with caton box and plywooden case according to the normal packing demand for sea transport and air transport.
Delivery Detail: 7~30days

Specifications

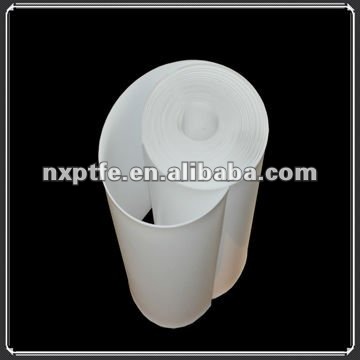

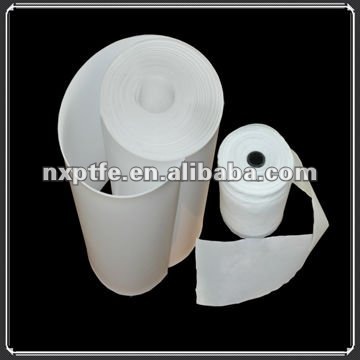

rolls white (ptfe) plastic sheet F4
1.manufactured by molding with PTFE granular resin
2.virgin &recycled materials available.

rolls white (ptfe) plastic sheet  F4



is manufactured by molding with PTFE granular resin.

It can be used to make corrosion-resistant liner, seal, lining and gasket, scrap, guide rail, dielectric material for different frequency bridge bearing slide.



(1).ptfe F4 moulded sheet

thickness: 4~80mm

width : 10~1200mm

length: 10~1200mm

density :2.3g/cm3

Property

Unit

Mould sheet

specific gravity

--

2.1-2.3

Tensile strength (min)

MPa

≥15.0

Elongation at rupture

%

≥30

   high pressure resistant

KV/MM

--



(2).ptfe F4 skived sheet

thickness :0.5~12mm

width:10~1500mm

length :unlimited

density:2.22g/cm3

Property

Unit

Skived sheet

specific gravity

--

              2.1-2.3

Tensile strength (min)

MPa

≥15.0

Elongation at rupture

%

≥150

   high pressure resistant

KV/MM

10



Thickness(mm)

Width(mm)

Length(mm)

0.5-4.0

10-1500

unlimited

4.1-7.0

10-1500

unlimited

8

10-1500

unlimited

9

10-1500

unlimited

10

10-1500

unlimited

12

10-1500

unlimited



PTFE

Virgin, or unfilled, PTFE  is widely used due to it's unique combination of properties:

Characteristics:
Outstanding chemical resistance (unmatched by any other plastic)
lowest coefficient of friction of any plastic
superb electrical insulator
high resistance to weathering
wide working temperature range (-180C to +260C)

Typical applications:
Seats
Seals
Insulators
Sleeves and Liners
Bellows
bridge and pipe bearings

Properties (typical):
Colour:  White
Density: 2.3 g/cm3
